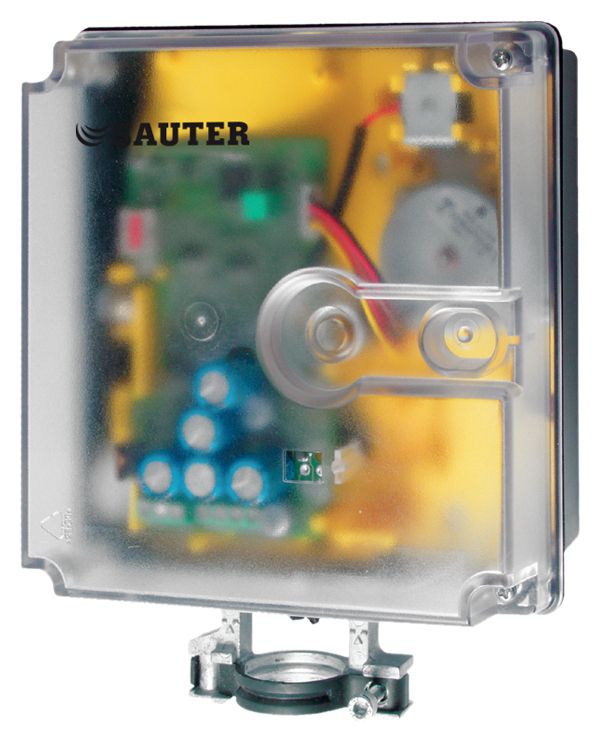

SUT valve actuator with spring return
AVF 125S
How energy efficiency is improved
Electric cut-off and self-adjustment to save energy
Caratteristiche
-
Activation of 2-way and 3-way valves of the VUN/BUN, VUD/BUD and VUE/BUE series
-
For controllers with switching (2- and 3-point) or continuous output (0…10 V, 4…20 mA)
-
Spring return moves the unit to the end position in the event of a power failure or when a limit controller is activated
-
Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic, force-dependent cut-off
-
Automatic recognition of applied control signal (continuous or switched)
-
Coding switches for selecting characteristic and running time
-
Type of characteristic (linear/quadratic/equal-percentage) can be set on the actuator
-
Direction of operation can be selected via screw terminals when making the electrical connection
-
Maintenance-free gear unit
-
LED display
-
Electrical connections (max. 1.5 mm²) with screw terminals
-
Cable inlet M20 × 1.5
-
Fitting vertically upright to horizontal, not suspended
